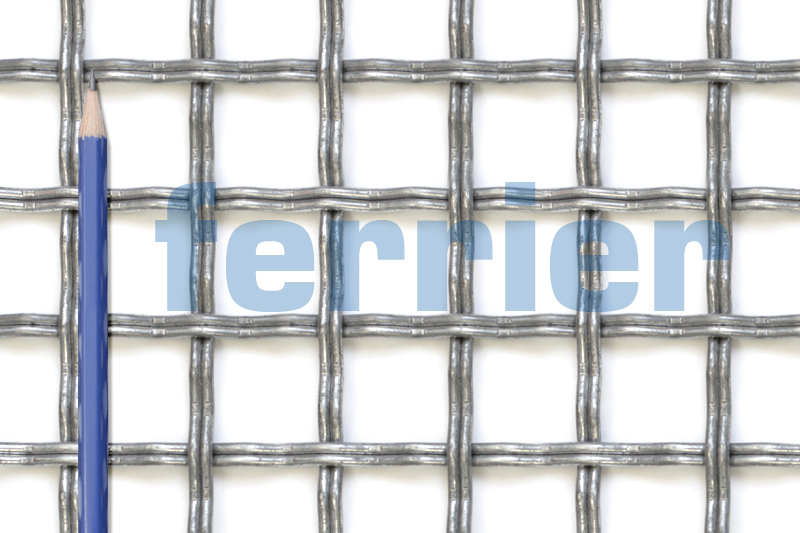

Ferrier Galvanized Woven Wire Mesh

Offering corrosion and rust protection due to the hot dip galvanized zinc coating, galvanized woven wire mesh offers an ideal option for outdoor usage. Ferrier Wires galvanized woven wire mesh can be used in railing, design applications, guarding, as well as various sifting and ventilation purposes. Some of our galvanized woven wire mesh is actually woven in house using our loom. Our 1-1/2” x 1-1/2” x .144” dia wire to our 1/2” to 1/2” x 0.116” dia wire patterns are made at Ferrier Wire using galvanized wire. Both Doppio G1.25 and Doppio G.75 are also woven using our loom at Ferrier. Our Doppio pattern is especially unique because of its double woven wires, creating a design that is perfect for decorative railings, infills, and other design applications of similar nature. Doppio is also available in other materials such as stainless steel, bronze, and even our BSS75 pattern that combines C260 brass and 304 grade stainless steel for an even more unique aesthetic.


Galvanized weavemesh
Expand All ← Click here to view all Galvanized weavemesh available for sale online
View moreImageSpec. sheetCentres or mesh count
Dimension from the centre of one wire to the next wire in inches or number of holes per linear inch (across width) x number of holes per linear inch (along length).
Wire diameter
Thickness of wire in inches.
Clear opening
Actual spacing between consecutive wires in inches.
Roll width(s)
Width of roll.
Applications/notes
Typical applications or uses of product.
View moreImageSpec. sheetCentres or mesh count
Dimension from the centre of one wire to the next wire in inches or number of holes per linear inch (across width) x number of holes per linear inch (along length).
Wire diameter
Thickness of wire in inches.
Clear opening
Actual spacing between consecutive wires in inches.
Roll width(s)
Width of roll.
Applications/notes
Typical applications or uses of product.
More information Ferrier galv 1-1/2 x 1-1/2 x .144 weavemesh
Ferrier galv 1-1/2 x 1-1/2 x .144 weavemesh
Ferrier galv 1-1/2 x 1-1/2 x .144 weavemesh
Ferrier galv 1-1/2 x 1-1/2 x .144 weavemesh
Centres or mesh count:
1-1/2" x 1-1/2"
Wire diameter:
0.144"
Clear opening:
1.356"
Roll width(s):
48"
Applications/notes:
railing, guarding
*.pdf 1-1/2" x 1-1/2"0.144"1.356"48"railing, guarding
More information Ferrier galv Doppio G1.25 pattern
Ferrier galv Doppio G1.25 pattern
Ferrier galv Doppio G1.25 pattern
Ferrier galv Doppio G1.25 pattern
Centres or mesh count:
Doppio G1.25 pattern
Wire diameter:
0.116" double
Clear opening:
1.018"
Roll width(s):
custom
Applications/notes:
decorative railing, design applications
--- Doppio G1.25 pattern0.116" double1.018"customdecorative railing, design applications
More information Ferrier galv 1 x 1 x .125 weavemesh
Ferrier galv 1 x 1 x .125 weavemesh
Ferrier galv 1 x 1 x .125 weavemesh
Ferrier galv 1 x 1 x .125 weavemesh
Centres or mesh count:
1" x 1"
Wire diameter:
0.125"
Clear opening:
0.875"
Roll width(s):
48" wide
Applications/notes:
railing, guarding
*.pdf 1" x 1"0.125"0.875"48" widerailing, guarding
More information Ferrier galv 3/4 x 3/4 x .125 weavermesh
Ferrier galv 3/4 x 3/4 x .125 weavermesh
Ferrier galv 3/4 x 3/4 x .125 weavermesh
Ferrier galv 3/4 x 3/4 x .125 weavermesh
Centres or mesh count:
3/4" x 3/4"
Wire diameter:
0.125"
Clear opening:
0.625"
Roll width(s):
48" wide
Applications/notes:
railing, guarding
*.pdf 3/4" x 3/4"0.125"0.625"48" widerailing, guarding
More information Ferrier galv Doppio G.75 pattern
Ferrier galv Doppio G.75 pattern
Ferrier galv Doppio G.75 pattern
Ferrier galv Doppio G.75 pattern
Centres or mesh count:
Doppio G.75 pattern
Wire diameter:
0.080" double
Clear opening:
0.59"
Roll width(s):
custom
Applications/notes:
design applications
--- Doppio G.75 pattern0.080" double0.59"customdesign applications
More information Ferrier galv 1/2 x 1/2 x .116 weavemesh
Ferrier galv 1/2 x 1/2 x .116 weavemesh
Ferrier galv 1/2 x 1/2 x .116 weavemesh
Ferrier galv 1/2 x 1/2 x .116 weavemesh
Centres or mesh count:
1/2" x 1/2"
Wire diameter:
0.116"
Clear opening:
0.384"
Roll width(s):
48" wide
Applications/notes:
railing, guarding
--- 1/2" x 1/2"0.116"0.384"48" widerailing, guarding
Purchase Online Ferrier GAW 4 x 4 x .047 weavemesh
Ferrier GAW 4 x 4 x .047 weavemesh
Ferrier GAW 4 x 4 x .047 weavemesh
Ferrier GAW 4 x 4 x .047 weavemesh
Centres or mesh count:
4 x 4 mesh
Wire diameter:
0.047"
Clear opening:
0.203"
Roll width(s):
48" wide
Applications/notes:
galvanized turtle mesh
Size
Material/finish
Price
Delivery Options
Quantity
48" x 96"
Hot dip galvanized after weaving
$ 145.00 CAD
Courier Delivery
48" x 96"
Hot dip galvanized after weaving
$ 145.00 CAD
Pick Up From Ferrier
48" x 96"
Hot dip galvanized after weaving
$ 145.00 CAD
Special Freight Service
48" x 100'
Hot dip galvanized after weaving
$ 951.00 CAD
Pick Up From Ferrier
48" x 100'
Hot dip galvanized after weaving
$ 951.00 CAD
Special Freight Service

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
--- 4 x 4 mesh0.047"0.203"48" widegalvanized turtle mesh
Purchase Online Ferrier GAW 4 x 4 x .035 weavemesh
Ferrier GAW 4 x 4 x .035 weavemesh
Ferrier GAW 4 x 4 x .035 weavemesh
Ferrier GAW 4 x 4 x .035 weavemesh
Centres or mesh count:
4 x 4 mesh
Wire diameter:
0.035"
Clear opening:
0.215"
Roll width(s):
48" wide
Applications/notes:
archeological sifting
Size
Material/finish
Price
Delivery Options
Quantity
4' x 10'
Hot dip galvanized after weaving
$ 172.00 CAD
Courier Delivery
4' x 10'
Hot dip galvanized after weaving
$ 172.00 CAD
Pick Up From Ferrier
4' x 10'
Hot dip galvanized after weaving
$ 172.00 CAD
Special Freight Service
4' x 100'
Hot dip galvanized after weaving
$ 1389.00 CAD
Pick Up From Ferrier
4' x 100'
Hot dip galvanized after weaving
$ 1389.00 CAD
Special Freight Service

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 4 x 4 mesh0.035"0.215"48" widearcheological sifting

Galvanized material can be powder coated for increased protection against the elements as well as a unique appearance. For more information about our finishing options please feel free to contact us



To add to our galvanized products outdoor uses, the galvanization process is also much more sustainable for the environment than the manufacturing processes of other metals and finishes as it causes minimal emissions and contamination for the environment. Our galvanized material is also easily recycled with other metal scrap to ensure minimal waste is produced from our shop.



For more galvanized options, please visit our GBW (galvanized before welding) and our GAW (galvanized after welding) pages. These are strictly welded galvanized products that are available in standard-sized rolls of material. These rolls are manufactured in Italy and may offer a better alternative for some projects.



If you have any questions about our galvanized woven wire mesh or any other products, please call or email us.
