Ferrier Wire Mild Steel Woven and Welded Wire Mesh
Mild steel (sometimes referred to as “plain” steel) is a material that consists mainly of carbon and iron. Mild steel is a very attractive option for a wide range of applications due to its relatively low cost compared to other materials as well as its wide variety of applications. These applications include guarding, railing infills, cabinetry and millwork, and filtration.
One thing that must be taken into consideration when working with mild steel is that bare mild steel will rust and corrode over time. In some cases even the moisture in the air in indoor applications can cause bare mild steel to rust. A slightly more expensive alternative to this would be our stainless steel woven and welded wire mesh line of products which are rust and corrosion resistant and suitable for outdoor use. Powder coating and plating options are available for all of our mild steel products, for more information about our finishing options please contact us.
| View more | Image | Spec. sheet | Weldmesh or weavemesh Type of wire mesh. | Centres or mesh count Dimension from the centre of one wire to the next wire in inches or number of holes per linear inch (across width) x number of holes per linear inch (along length). | Clear opening Distance from one wire to the next wire | % Open area The percent open area relates to the amount of flow or light that will pass through the mesh. | Sheet size or roll width Standard sheet size or roll width. | Applications/notes Typical applications or uses of product |
|---|
| View more | Image | Spec. sheet | Weldmesh or weavemesh Type of wire mesh. | Centres or mesh count Dimension from the centre of one wire to the next wire in inches or number of holes per linear inch (across width) x number of holes per linear inch (along length). | Clear opening Distance from one wire to the next wire | % Open area The percent open area relates to the amount of flow or light that will pass through the mesh. | Sheet size or roll width Standard sheet size or roll width. | Applications/notes Typical applications or uses of product |
|---|---|---|---|---|---|---|---|---|
 |
Ferrier MS 2" x 2" x .187 weldmesh
Ferrier MS 2" x 2" x .187 weldmesh Weldmesh or weavemesh: weldmesh Centres or mesh count: 2" x 2" Wire diameter: 0.187" Clear opening: 1.813" x 1.813" % Open area: 82.2 Sheet size or roll width: 4' x 8' Applications/notes: guarding, railings
|
weldmesh | 2" x 2" | 1.813" x 1.813" | 82.2 | 4' x 8' | guarding, railings | |
|
Ferrier MS 2" x 2" x .125 weldmesh
Ferrier MS 2" x 2" x .125 weldmesh Weldmesh or weavemesh: weldmesh Centres or mesh count: 2" x 2" Wire diameter: 0.125" Clear opening: 1.875" x 1.875" % Open area: 87.9 Sheet size or roll width: 4' x 8' Applications/notes: guarding, railings
|
weldmesh | 2" x 2" | 1.875" x 1.875" | 87.9 | 4' x 8' | guarding, railings | |
|
Ferrier MS 1-1/2" x 1-1/2" x .144 weavemesh
Ferrier MS 1-1/2" x 1-1/2" x .144 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 1-1/2" x 1-1/2" Wire diameter: 0.144" Clear opening: 1.356" % Open area: 81.7 Sheet size or roll width: 48" wide, custom Applications/notes: railings, guarding
|
weavemesh | 1-1/2" x 1-1/2" | 1.356" | 81.7 | 48" wide, custom | railings, guarding | |
 |
Ferrier MS 1-1/2" x 1-1/2" x .120 weldmesh
Ferrier MS 1-1/2" x 1-1/2" x .120 weldmesh Weldmesh or weavemesh: weldmesh Centres or mesh count: 1-1/2" x 1-1/2" Wire diameter: 0.120" Clear opening: 1.38" % Open area: 84.6 Sheet size or roll width: 4' x 8' Applications/notes: guarding, railings
|
--- | weldmesh | 1-1/2" x 1-1/2" | 1.38" | 84.6 | 4' x 8' | guarding, railings |
|

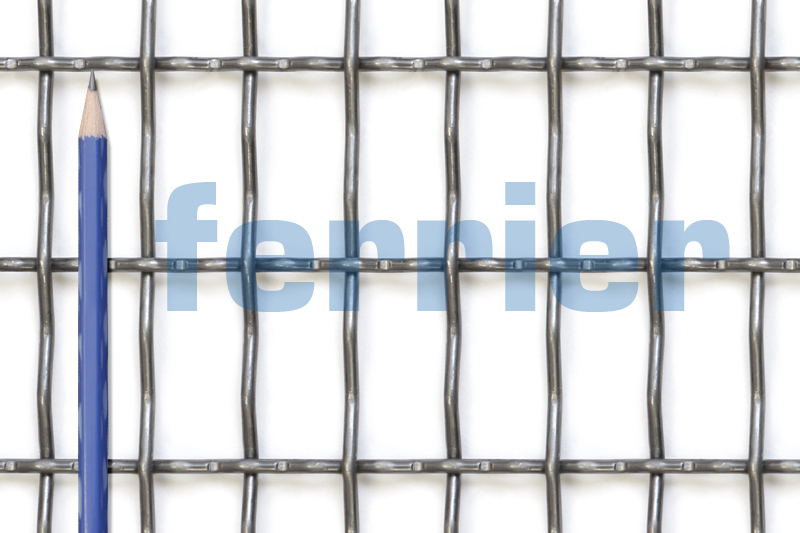

Ferrier MS 2" x 1" x .144 weavemesh
Ferrier MS 2" x 1" x .144 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 2" x 1" Wire diameter: 0.144" Clear opening: 1.856" x 0.856" % Open area: na Sheet size or roll width: 48" wide, custom Applications/notes: guarding, railings
|
*.pdf*.dwg | weavemesh | 2" x 1" | 1.856" x 0.856" | na | 48" wide, custom | guarding, railings |
|
Ferrier MS 1" x 1" x .120 weldmesh
Ferrier MS 1" x 1" x .120 weldmesh Weldmesh or weavemesh: weldmesh Centres or mesh count: 1" x 1" Wire diameter: 0.120" Clear opening: 0.88" % Open area: 77.4 Sheet size or roll width: 4' x 8' Applications/notes: railings, guarding
|
weldmesh | 1" x 1" | 0.88" | 77.4 | 4' x 8' | railings, guarding | |
|
Ferrier MS 1" x 1" x .125 weavemesh
Ferrier MS 1" x 1" x .125 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 1" x 1" Wire diameter: 0.125" Clear opening: 0.875" % Open area: 76.6 Sheet size or roll width: 48" wide, custom Applications/notes: railings, guarding
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 1" x 1" | 0.875" | 76.6 | 48" wide, custom | railings, guarding | |
|
Ferrier MS 3/4" x 3/4" x .125 weavemesh
Ferrier MS 3/4" x 3/4" x .125 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 3/4" x 3/4" Wire diameter: 0.125" Clear opening: 0.625" % Open area: 69.4 Sheet size or roll width: 48" wide, custom Applications/notes: railings, guarding
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 3/4" x 3/4" | 0.625" | 69.4 | 48" wide, custom | railings, guarding | |
|
Ferrier MS 2 x 2 mesh x .104 weavemesh
Ferrier MS 2 x 2 mesh x .104 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 2 x 2 mesh Wire diameter: 0.104" Clear opening: 0.396" % Open area: 62.7 Sheet size or roll width: 48" wide Applications/notes: railing, guarding
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 2 x 2 mesh | 0.396" | 62.7 | 48" wide | railing, guarding | |
|
Ferrier MS 2 x 2 mesh x .092 weavemesh
Ferrier MS 2 x 2 mesh x .092 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 2 x 2 mesh Wire diameter: 0.092" Clear opening: 0.408" % Open area: 66.59 Sheet size or roll width: 48" x 48", custom Applications/notes: cabinets, railings, guarding
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 2 x 2 mesh | 0.408" | 66.59 | 48" x 48", custom | cabinets, railings, guarding | |
|
Ferrier MS 3 x 3 mesh x .080 weavemesh
Ferrier MS 3 x 3 mesh x .080 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 3 x 3 mesh Wire diameter: 0.080" Clear opening: 0.253" % Open area: 57.6 Sheet size or roll width: 36" wide Applications/notes: cabinets, guarding, railings
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 3 x 3 mesh | 0.253" | 57.6 | 36" wide | cabinets, guarding, railings | |
|
Ferrier MS 3 x 3 mesh x .063IC weavemesh
Ferrier MS 3 x 3 mesh x .063IC weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 3 x 3 mesh Wire diameter: 0.063"IC Clear opening: 0.27" % Open area: 65.6 Sheet size or roll width: 48" wide Applications/notes: millwork, cabinetry
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
*.pdf*.dwg | weavemesh | 3 x 3 mesh | 0.27" | 65.6 | 48" wide | millwork, cabinetry |
|
Ferrier MS 4 x 4 mesh x .0625 weavemesh
Ferrier MS 4 x 4 mesh x .0625 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 4 x 4 mesh Wire diameter: 0.0625" Clear opening: 0.187" % Open area: 56 Sheet size or roll width: 48" wide Applications/notes: filtration
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 4 x 4 mesh | 0.187" | 56 | 48" wide | filtration | |
|
Ferrier MS 4 x 4 mesh x .047 weavemesh
Ferrier MS 4 x 4 mesh x .047 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 4 x 4 mesh Wire diameter: 0.047" Clear opening: 0.203" % Open area: 65.9 Sheet size or roll width: 48" wide Applications/notes: filtration
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 4 x 4 mesh | 0.203" | 65.9 | 48" wide | filtration | |
|
Ferrier MS 6 x 6 mesh x .0625 weavemesh
Ferrier MS 6 x 6 mesh x .0625 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 6 x 6 mesh Wire diameter: 0.0625" Clear opening: 0.104" % Open area: 38.9 Sheet size or roll width: 48" wide Applications/notes: millwork, cabinetry
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 6 x 6 mesh | 0.104" | 38.9 | 48" wide | millwork, cabinetry | |
|
Ferrier MS 6 x 6 mesh x .047 weavemesh
Ferrier MS 6 x 6 mesh x .047 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 6 x 6 mesh Wire diameter: 0.047" Clear opening: 0.12" % Open area: 51.8 Sheet size or roll width: 48" wide Applications/notes: fireplace screen
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 6 x 6 mesh | 0.12" | 51.8 | 48" wide | fireplace screen | |
|
Ferrier MS 6 x 6 mesh x .035 weavemesh
Ferrier MS 6 x 6 mesh x .035 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 6 x 6 mesh Wire diameter: 0.035" Clear opening: 0.132" % Open area: 62.7 Sheet size or roll width: 48" wide Applications/notes: light fireplace screen
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 6 x 6 mesh | 0.132" | 62.7 | 48" wide | light fireplace screen | |
|
Ferrier MS 8 x 8 mesh x .047 weavemesh
Ferrier MS 8 x 8 mesh x .047 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 8 x 8 mesh Wire diameter: 0.047" Clear opening: 0.078" % Open area: 38.9 Sheet size or roll width: 48" wide Applications/notes: millwork, cabinetry
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 8 x 8 mesh | 0.078" | 38.9 | 48" wide | millwork, cabinetry | |
|
Ferrier MS 8 x 8 mesh x .028 weavemesh
Ferrier MS 8 x 8 mesh x .028 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 8 x 8 mesh Wire diameter: 0.028" Clear opening: 0.097" % Open area: 60.2 Sheet size or roll width: 48" wide Applications/notes: light fireplace screen
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 8 x 8 mesh | 0.097" | 60.2 | 48" wide | light fireplace screen | |
|
Ferrier MS 10 x 10 mesh x .035 weavemesh
Ferrier MS 10 x 10 mesh x .035 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 10 x 10 mesh Wire diameter: 0.035" Clear opening: 0.065" % Open area: 42.3 Sheet size or roll width: 48" wide Applications/notes: filtration
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 10 x 10 mesh | 0.065" | 42.3 | 48" wide | filtration | |
|
Ferrier MS 10 x 10 mesh x .025 weavemesh
Ferrier MS 10 x 10 mesh x .025 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 10 x 10 mesh Wire diameter: 0.025" Clear opening: 0.075" % Open area: 56.3 Sheet size or roll width: 48" wide Applications/notes: filtration
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 10 x 10 mesh | 0.075" | 56.3 | 48" wide | filtration | |
|
Ferrier MS 14 x 14 mesh x .020 weavemesh
Ferrier MS 14 x 14 mesh x .020 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 14 x 14 mesh Wire diameter: 0.020" Clear opening: 0.051" % Open area: 51 Sheet size or roll width: 48" wide Applications/notes: filtration
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 14 x 14 mesh | 0.051" | 51 | 48" wide | filtration | |
|
Ferrier MS 30 x 30 mesh x .012 weavemesh
Ferrier MS 30 x 30 mesh x .012 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 30 x 30 mesh Wire diameter: 0.012" Clear opening: 0.021" % Open area: 40.8 Sheet size or roll width: 36" wide Applications/notes: filtration
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
weavemesh | 30 x 30 mesh | 0.021" | 40.8 | 36" wide | filtration | |
|
Ferrier MS 40 x 40 mesh x .010 weavemesh
Ferrier MS 40 x 40 mesh x .010 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 40 x 40 mesh Wire diameter: 0.01" Clear opening: 0.015" % Open area: 36 Sheet size or roll width: 40", 48" wide Applications/notes: filtration
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
*.pdf*.dwg | weavemesh | 40 x 40 mesh | 0.015" | 36 | 40", 48" wide | filtration |
|
Ferrier MS 60 x 60 mesh x .0075 weavemesh
Ferrier MS 60 x 60 mesh x .0075 weavemesh Weldmesh or weavemesh: weavemesh Centres or mesh count: 60 x 60 mesh Wire diameter: 0.0075" Clear opening: 0.009" % Open area: 30.5 Sheet size or roll width: 48" wide Applications/notes: filtration
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
*.pdf*.dwg | weavemesh | 60 x 60 mesh | 0.009" | 30.5 | 48" wide | filtration |
Our mild steel wire mesh products are available in both woven and welded varieties. From welded products with clear openings ranging from 1.813” to tightly woven products with clear openings of 0.009”, Ferrier Wire can offer a very diverse variety of mild steel wire mesh products with many different uses and applications.
Mild steel wire mesh can be used in both industrial and design applications. One project worth noting that utilized mild steel woven wire mesh for its design capabilities was a wine cellar door project. This project utilized our mild steel 4 x 4 x .047” woven pattern for infills on a wine cellar door. The use of this material allowed for partial transparency when looking at the wine cellar through the doors, creating an interesting visual appeal to the cellar. More information and pictures of this project can be viewed by clicking here.
If you have any questions about our mild steel weavemesh, weldmesh, or any other products, please call or email us.
