Ferrier Wire Design Perforated Metal Collection

Ferrier Wires line of design perforated metal represents a relatively cost effective, versatile option that can be used for various design applications. Some of these applications include radiator covers, cabinetry, use in millwork, privacy screens, railings, and various other design/industrial applications.

All of our design perforated patterns (with the exception of our stainless steel 1/2” square pattern) use mild steel and are not suitable for outdoor use when sold as the material will eventually rust. Powder coating and plating finishes are available for all of our design perforated products. For more information about our plating and powder coating options, please feel free to contact us.

Our design perforated products have been used in a variety of projects ranging from privacy screens in the Air Canada Centre to ceiling tiles in an office building located in Markham. Samples for each of the patterns below are available upon request, spec sheets are also available below for more information about our products.

Design perforated metal

Expand All ← Click here to view all Design perforated metal available for sale online

View more	Image	Spec. sheet	pattern The name or description of the pattern.	gauge Thickness of material in metal gauge.	% open area The percent open area relates to the amount of flow (or light) that will go through the perforated material.	lbs/sf Weight of the material per square foot.	sheet size Standard sheet size.	applications/notes Typical applications or uses of product.

View more	Image	Spec. sheet	pattern The name or description of the pattern.	gauge Thickness of material in metal gauge.	% open area The percent open area relates to the amount of flow (or light) that will go through the perforated material.	lbs/sf Weight of the material per square foot.	sheet size Standard sheet size.	applications/notes Typical applications or uses of product.
	Ferrier MS Aedelsten pattern Ferrier MS Aedelsten pattern pattern: Aedelsten gauge: 22 % open area: 53 lbs/sf: 0.57 sheet size: 36" x 48", 48" x 96", or shear to size please email for a quote applications/notes: radiator covers, cabinets Ferrier MS Aedelsten pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 36" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	Aedelsten	22	53	0.57	36" x 48", 48" x 96", or shear to size please...	radiator covers, cabinets
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 36" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity
	Ferrier MS 1/4" Hexagon pattern Ferrier MS 1/4" Hexagon pattern pattern: 1/4" Hexagon gauge: 16 % open area: 65 lbs/sf: 0.87 sheet size: 36" x 48", 48" x 48", 48" x 96" applications/notes: millwork, cabinetry Ferrier MS 1/4" Hexagon pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 270.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 270.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 270.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 431.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 431.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	1/4" Hexagon	16	65	0.87	36" x 48", 48" x 48", 48" x 96"	millwork, cabinetry
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 270.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 270.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 270.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 431.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 431.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity
	Ferrier MS Sacchetto pattern Ferrier MS Sacchetto pattern pattern: Sacchetto gauge: 22 % open area: 30 lbs/sf: 0.85 sheet size: 36" x 48", 43" x 48", 43" x 96" usable pattern, or shear to size please email for quote applications/notes: radiator covers, cabinets, privacy screens Ferrier MS Sacchetto pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 43" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 43" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 43" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 43" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	Sacchetto	22	30	0.85	36" x 48", 43" x 48", 43" x 96" usable patter...	radiator covers, cabinets, privacy screens
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 43" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 43" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 43" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 43" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity
	Ferrier MS Ventilatore pattern Ferrier MS Ventilatore pattern pattern: Ventilatore gauge: 22 % open area: 50 lbs/sf: 0.61 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for quote applications/notes: radiator covers, cabinets, privacy screens Ferrier MS Ventilatore pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	Ventilatore	22	50	0.61	36" x 48", 48" x 48", 48" x 96" or shear to s...	radiator covers, cabinets, privacy screens
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity
	Ferrier MS Grecian pattern Ferrier MS Grecian pattern pattern: Grecian gauge: 20 % open area: 35 lbs/sf: 0.65 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for quote applications/notes: radiator covers, cabinets, privacy screens Ferrier MS Grecian pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	Grecian	20	35	0.65	36" x 48", 48" x 48", 48" x 96" or shear to s...	radiator covers, cabinets, privacy screens
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity
	Ferrier MS 1/2" Hexagon pattern Ferrier MS 1/2" Hexagon pattern pattern: 1/2" Hexagon x 9/16" stag gauge: 16 % open area: 79 lbs/sf: 0.50 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for quote applications/notes: decorative, railings Ferrier MS 1/2" Hexagon pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	1/2" Hexagon x 9/16" stag	16	79	0.50	36" x 48", 48" x 48", 48" x 96" or shear to s...	decorative, railings
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity

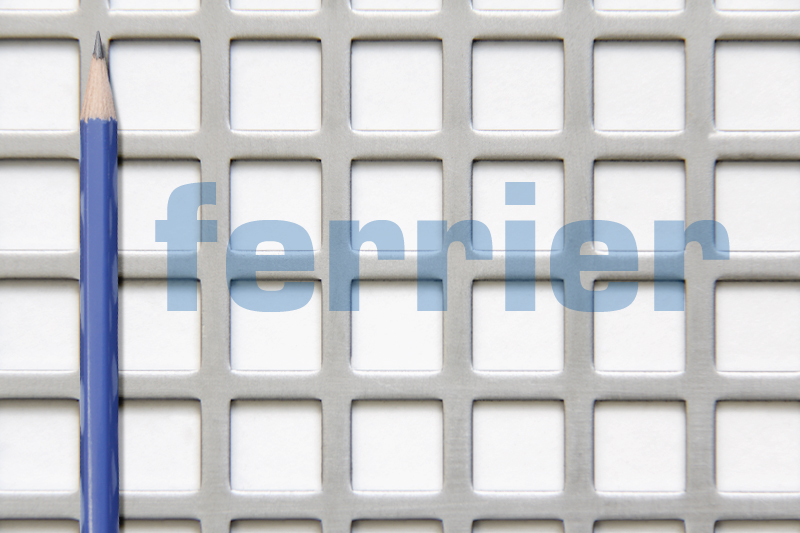

	Ferrier MS .200" Square pattern Ferrier MS .200" Square pattern pattern: NEW: 0.200" Square x .250" str gauge: 20 % open area: 64 lbs/sf: 0.54 sheet size: 36" x 48", 48" x 48", 48" x 96" applications/notes: millwork, cabinetry Ferrier MS .200" Square pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 199.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	NEW: 0.200" Square x .250" str	20	64	0.54	36" x 48", 48" x 48", 48" x 96"	millwork, cabinetry
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 199.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity

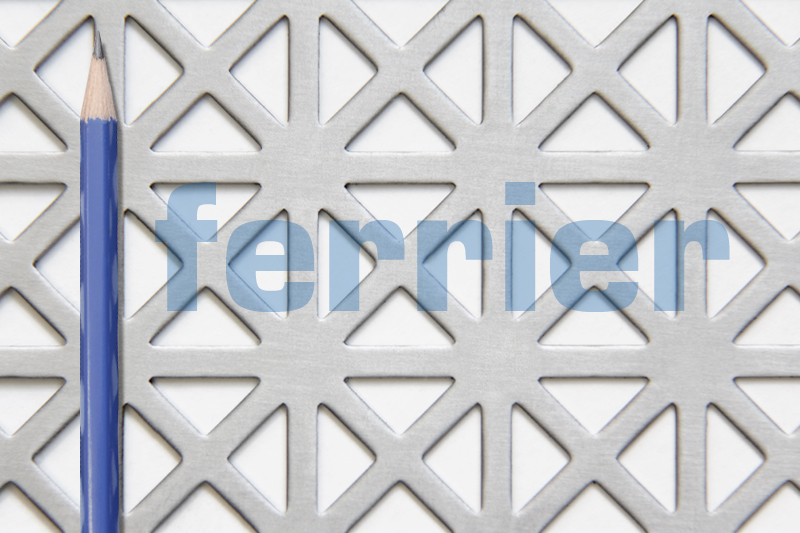

	Ferrier MS .144" Triangle pattern Ferrier MS .144" Triangle pattern pattern: NEW: .144" Triangle gauge: 20 % open area: 38 lbs/sf: .93 sheet size: 36" x 48", 36" x 96" or shear to size please email for a quote applications/notes: misc design applications Ferrier MS .144" Triangle pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 267.00 CAD Courier Delivery Purchase Go to 36" x 48" Mild steel (unfinished) $ 267.00 CAD Pick Up From Ferrier Purchase Go to 36" x 96" Mild steel (unfinished) $ 427.00 CAD Pick Up From Ferrier Purchase Go to 36" x 96" Mild steel (unfinished) $ 427.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	NEW: .144" Triangle	20	38	.93	36" x 48", 36" x 96" or shear to size please ...	misc design applications
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 267.00 CAD Courier Delivery Purchase Go to 36" x 48" Mild steel (unfinished) $ 267.00 CAD Pick Up From Ferrier Purchase Go to 36" x 96" Mild steel (unfinished) $ 427.00 CAD Pick Up From Ferrier Purchase Go to 36" x 96" Mild steel (unfinished) $ 427.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity
	Ferrier MS Windsor pattern Ferrier MS Windsor pattern pattern: Windsor gauge: 20 % open area: 45 lbs/sf: 0.55 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for quote applications/notes: radiator covers, cabinets, privacy screens Ferrier MS Windsor pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	Windsor	20	45	0.55	36" x 48", 48" x 48", 48" x 96" or shear to s...	radiator covers, cabinets, privacy screens
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity

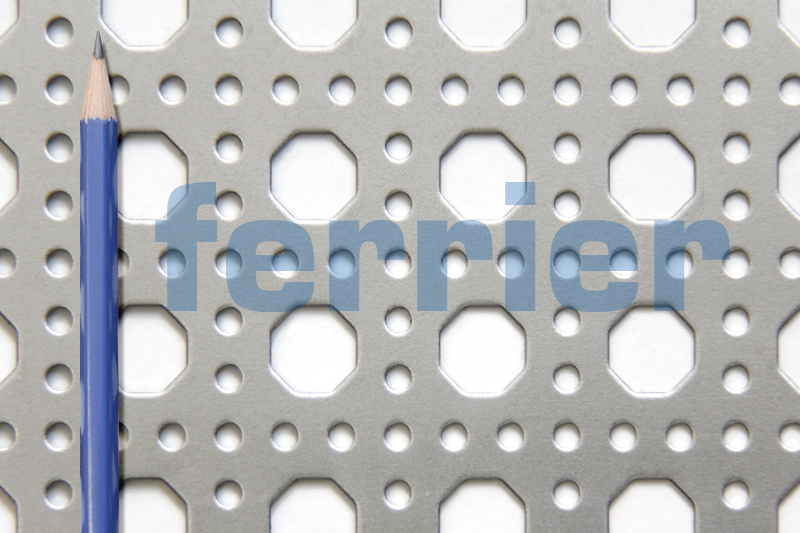

	Ferrier MS Small Octagon Cane pattern Ferrier MS Small Octagon Cane pattern pattern: Small Octagon Cane gauge: 20 % open area: 41 lbs/sf: 0.8 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for quote applications/notes: radiator covers, cabinets, privacy screens Ferrier MS Small Octagon Cane pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	Small Octagon Cane	20	41	0.8	36" x 48", 48" x 48", 48" x 96" or shear to s...	radiator covers, cabinets, privacy screens
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity

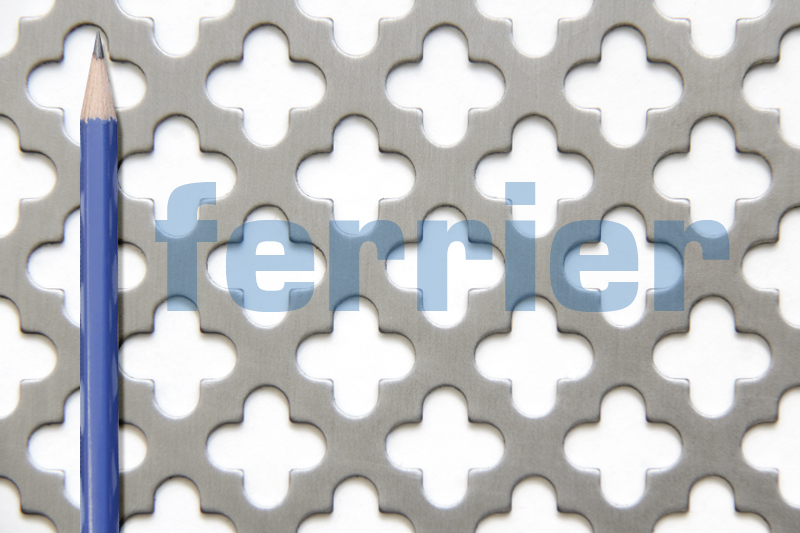

	Ferrier MS Full clover pattern Ferrier MS Full clover pattern pattern: Full clover gauge: 20 % open area: 51 lbs/sf: 0.61 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for quote applications/notes: radiator covers, cabinets, privacy screens Ferrier MS Full clover pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	Full clover	20	51	0.61	36" x 48", 48" x 48", 48" x 96" or shear to s...	radiator covers, cabinets, privacy screens
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity
	Ferrier SS 1/2" Square pattern Ferrier SS 1/2" Square pattern pattern: NEW: SS 1/2" Square x 11/16" str gauge: 16 % open area: 53 lbs/sf: 1.18 sheet size: 36" x 48", 48" x 48", 48" x 96" applications/notes: STAINLESS STEEL: exterior, railing infill panes Ferrier SS 1/2" Square pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Stainless steel $ 570.00 CAD Courier Delivery Purchase Go to 48" x 48" Stainless steel $ 570.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Stainless steel $ 570.00 CAD Special Freight Service Inquire Go to 48" x 96" Stainless steel $ 911.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Stainless steel $ 911.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	NEW: SS 1/2" Square x 11/16" str	16	53	1.18	36" x 48", 48" x 48", 48" x 96"	STAINLESS STEEL: exterior, railing infill pan...
Size Material/finish Price Delivery Options Quantity 36" x 48" Stainless steel $ 570.00 CAD Courier Delivery Purchase Go to 48" x 48" Stainless steel $ 570.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Stainless steel $ 570.00 CAD Special Freight Service Inquire Go to 48" x 96" Stainless steel $ 911.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Stainless steel $ 911.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity
	Ferrier MS Chainlink pattern Ferrier MS Chainlink pattern pattern: Chainlink gauge: 20 % open area: 48 lbs/sf: 0.84 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for quote applications/notes: radiator covers, cabinets, privacy screens Ferrier MS Chainlink pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	Chainlink	20	48	0.84	36" x 48", 48" x 48", 48" x 96" or shear to s...	radiator covers, cabinets, privacy screens
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 180.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 180.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 288.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity

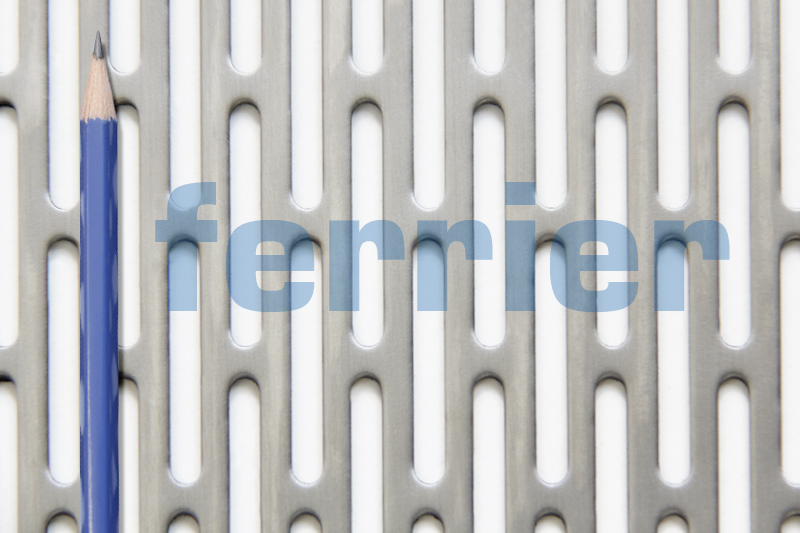

	Ferrier MS 1/8" x 1" RES pattern Ferrier MS 1/8" x 1" RES pattern pattern: 1/8" x 1" Round end slot gauge: 16 % open area: 38 lbs/sf: 1.55 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for quote applications/notes: radiator covers, cabinets, railing infill panels, privacy screens Ferrier MS 1/8" x 1" RES pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 196.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 196.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 196.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 313.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 313.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	1/8" x 1" Round end slot	16	38	1.55	36" x 48", 48" x 48", 48" x 96" or shear to s...	radiator covers, cabinets, railing infill pan...
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 196.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 196.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 196.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 313.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 313.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity

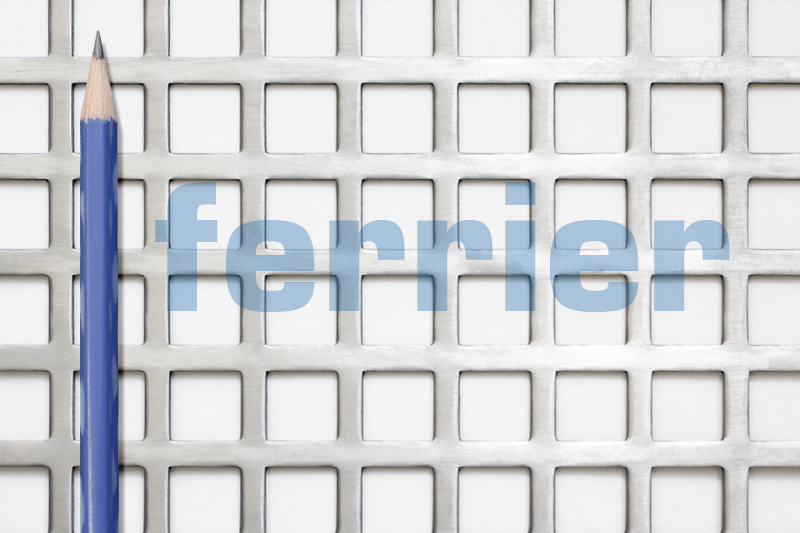

	Ferrier MS .375" Square pattern Ferrier MS .375" Square pattern pattern: 3/8" Square x 1/2" str gauge: 16 % open area: 53 lbs/sf: 1.18 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for quote applications/notes: radiator covers, cabinets, railing infill panels Ferrier MS .375" Square pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 199.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	3/8" Square x 1/2" str	16	53	1.18	36" x 48", 48" x 48", 48" x 96" or shear to s...	radiator covers, cabinets, railing infill pan...
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 199.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity
	Ferrier MS 1/2" Square pattern Ferrier MS 1/2" Square pattern pattern: 1/2" Square x 11/16" str gauge: 16 % open area: 53 lbs/sf: 1.18 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for quote applications/notes: radiator covers, cabinets, railing infill panels Ferrier MS 1/2" Square pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 199.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	1/2" Square x 11/16" str	16	53	1.18	36" x 48", 48" x 48", 48" x 96" or shear to s...	radiator covers, cabinets, railing infill pan...
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 199.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 199.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity

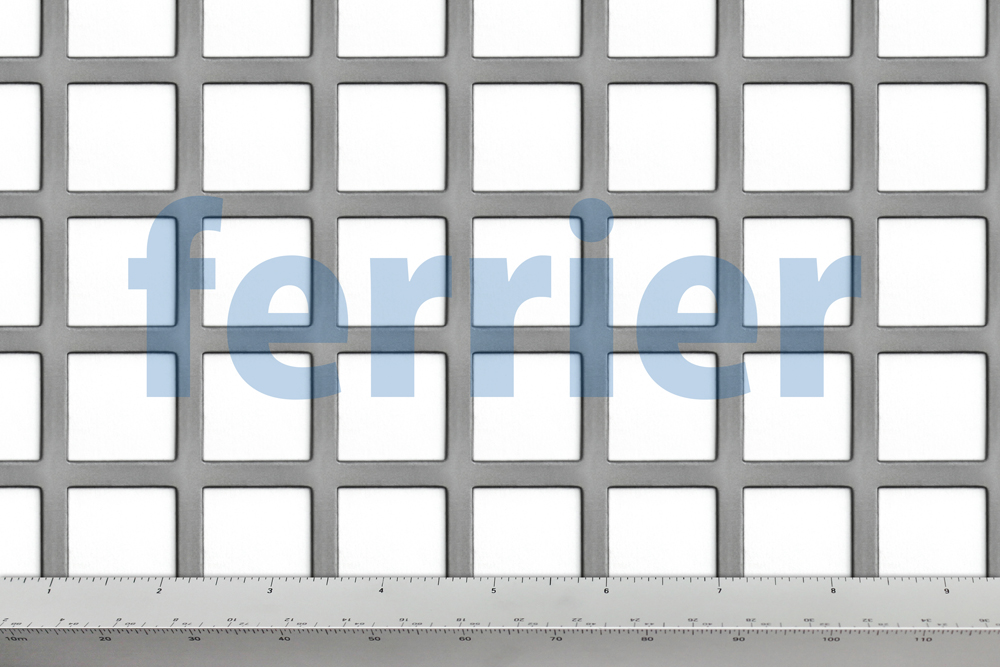

	Ferrier MS 1.00" Square pattern Ferrier MS 1.00" Square pattern pattern: 1.00" Square x 1-1/4" str gauge: 16 % open area: 64 lbs/sf: 0.90 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for a quote applications/notes: infill panels, millwork, cabinetry Ferrier MS 1.00" Square pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 202.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 202.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 202.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 323.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 323.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	1.00" Square x 1-1/4" str	16	64	0.90	36" x 48", 48" x 48", 48" x 96" or shear to s...	infill panels, millwork, cabinetry
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 202.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 202.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 202.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 323.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 323.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity

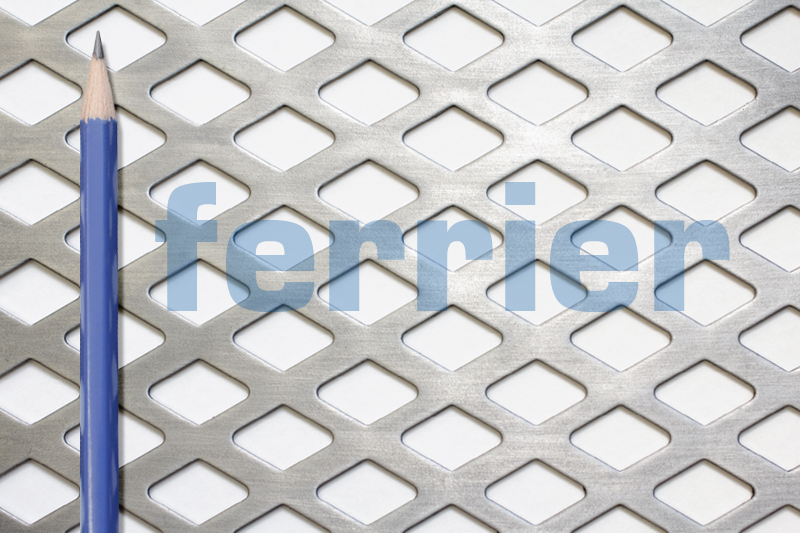

	Ferrier MS 1/2" x 3/4" Diamond pattern Ferrier MS 1/2" x 3/4" Diamond pattern pattern: 1/2" x 3/4" Diamond gauge: 16 % open area: 50 lbs/sf: 1.25 sheet size: 36" x 48", 48" x 48", 48" x 96" or shear to size please email for quote applications/notes: radiator covers, cabinets, railing infill panels Ferrier MS 1/2" x 3/4" Diamond pattern Spec Sheet Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 198.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 198.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 198.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity	.pdf .dwg	1/2" x 3/4" Diamond	16	50	1.25	36" x 48", 48" x 48", 48" x 96" or shear to s...	radiator covers, cabinets, railing infill pan...
Size Material/finish Price Delivery Options Quantity 36" x 48" Mild steel (unfinished) $ 198.00 CAD Courier Delivery Purchase Go to 48" x 48" Mild steel (unfinished) $ 198.00 CAD Pick Up From Ferrier Purchase Go to 48" x 48" Mild steel (unfinished) $ 198.00 CAD Special Freight Service Inquire Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Pick Up From Ferrier Purchase Go to 48" x 96" Mild steel (unfinished) $ 317.00 CAD Special Freight Service Inquire Go to Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size Material/finish Description (if applicable) Quantity Request special size and or quantity
	Ferrier MS Chainlink BIAS CUT Ferrier MS Chainlink BIAS CUT pattern: Chainlink BIAS CUT gauge: 20 % open area: 48 lbs/sf: 0.84 sheet size: custom shear to size, please email for quote applications/notes: radiator covers, cabinets Ferrier MS Chainlink BIAS CUT Spec Sheet	.pdf .dwg	Chainlink BIAS CUT	20	48	0.84	custom shear to size, please email for quote	radiator covers, cabinets

Ferrier Wire has recently acquired a turret punching machine capable of punching custom perforations and patterns into raw sheet metal. The Euromac CX1000-30 turret punching machine is a hydro electronically powered CNC punching turret that was acquired in January of 2022. For more information about the Euromac please click here. To see some of our custom perforated patterns please click here.

The process for manufacturing design perforated metal involves feeding sheet metal through a press which then punches the desired pattern directly into the sheet metal. An alternative to this manufacturing process is using coils of steel as opposed to sheet metal. In this process, coils of steel are fed through a punch similar to the sheet metal process, however when the material exits the punch it remains coiled up. The perforated coil material is then sheared to size after being run through a set of rollers to flatten the material. Due to the nature of the perforating process, sheets often come out curved and rollers are used to flatten them to the desired shape.

Due to the process of making design perforated material, the sheets available above vary from 16 gauge to 22 gauge in thickness depending on the desired pattern. The thickness and material of the sheet metal used largely determine if they can be properly and safely punched without damaging the punch.

If you have any questions about our design perforated metal, please contact us. To view our complete range of architectural and design products as well as projects utilizing them, please visit Ferrier Design.
