Ferrier Wire Stainless Steel Round Hole Perforated Metal Collection
Offering corrosion resistance as well as options for much finer hole diameters, stainless steel round hole perforated metal offers many advantages over mild steel round hole perforated metal. These advantages are the reason for the price difference between the two options; stainless steel perforated is generally more expensive than mild steel perforated. Our stainless steel perforated designs are available in both 304 and 316 stainless steel depending on the desired hole size, both of these grades of stainless steel are suitable for outdoor use and are corrosion resistant. All of our perforated products (stainless steel and mild steel) are able to be powder coated or plated, for more information on this process and our options please feel free to contact us.
Please contact us for pricing and availability of our stainless steel round hole products as the price of steel has experienced strong fluctuations in the past 3-4 years.
| View more | Image | Spec. sheet | Grade(s) Grade of stainless steel. | Hole size Diameter of the hole. | Centres Distance from the centre of one hole to the centre of the next hole. | Gauge Thickness of the sheet. | % Open area The percent open area relates to the amount of flow (or light) that will go through the perforated. | Lbs/sf Weight of the material per square foot. | Sheet size Standard sheet size. |
|---|
| View more | Image | Spec. sheet | Grade(s) Grade of stainless steel. | Hole size Diameter of the hole. | Centres Distance from the centre of one hole to the centre of the next hole. | Gauge Thickness of the sheet. | % Open area The percent open area relates to the amount of flow (or light) that will go through the perforated. | Lbs/sf Weight of the material per square foot. | Sheet size Standard sheet size. |
|---|---|---|---|---|---|---|---|---|---|
 |
Ferrier SS perf 3/4 x 1.00 x 16 ga
Ferrier SS perf 3/4 x 1.00 x 16 ga Grade(s): 304 Hole size: 3/4" Centres: 1.00" stag Gauge: 16 % Open area: 51 Lbs/sf: 1.23 Sheet size: 4' x 8'
|
304 | 3/4" | 1.00" stag | 16 | 51 | 1.23 | 4' x 8' | |
|

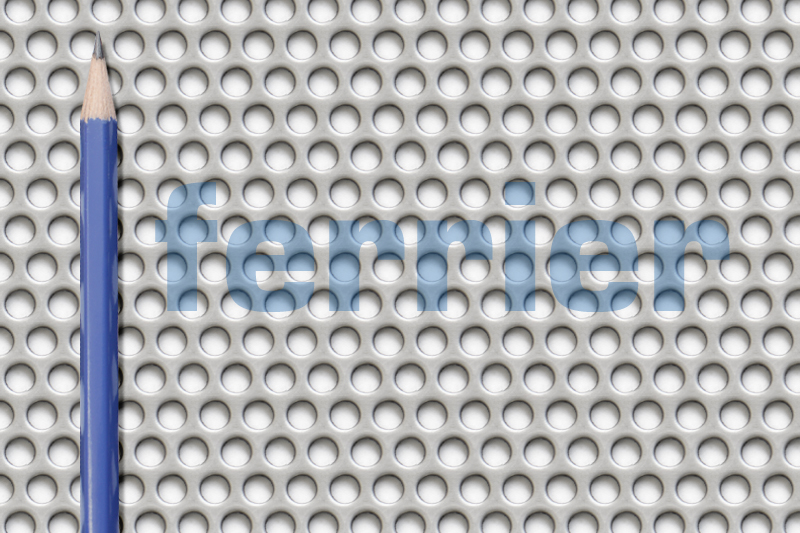

Ferrier SS perf 1/2 x 11/16 x 16 ga
Ferrier SS perf 1/2 x 11/16 x 16 ga Grade(s): 304 Hole size: 1/2" Centres: 11/16" stag Gauge: 16 % Open area: 50 Lbs/sf: 1.25 Sheet size: 4' x 8'
|
*.pdf*.dwg | 304 | 1/2" | 11/16" stag | 16 | 50 | 1.25 | 4' x 8' |
|

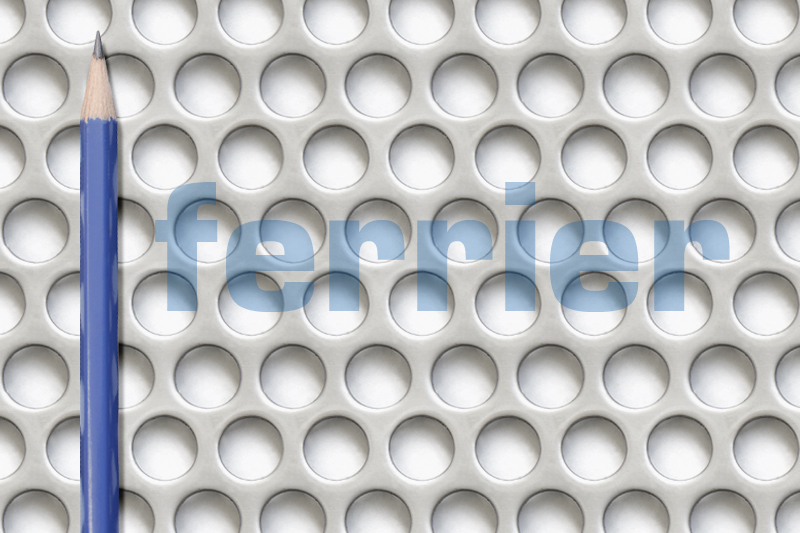

Ferrier SS perf 3/8 x 1/2 x 16 ga
Ferrier SS perf 3/8 x 1/2 x 16 ga Grade(s): 304 Hole size: 3/8" Centres: 1/2" stag Gauge: 16 % Open area: 51 Lbs/sf: 1.23 Sheet size: 4' x 8'
|
304 | 3/8" | 1/2" stag | 16 | 51 | 1.23 | 4' x 8' | |
|
Ferrier SS perf 1/4 x 3/8 x 16 ga
Ferrier SS perf 1/4 x 3/8 x 16 ga Grade(s): 304 Hole size: 1/4" Centres: 3/8" stag Gauge: 16 % Open area: 42 Lbs/sf: 1.45 Sheet size: 4' x 8'
|
*.pdf*.dwg | 304 | 1/4" | 3/8" stag | 16 | 42 | 1.45 | 4' x 8' |
|
Ferrier SS perf 3/16 x 1/4 x 16 ga
Ferrier SS perf 3/16 x 1/4 x 16 ga Grade(s): 304 Hole size: 3/16" Centres: 1/4" stag Gauge: 16 % Open area: 51 Lbs/sf: 1.23 Sheet size: 4' x 8'
|
304 | 3/16" | 1/4" stag | 16 | 51 | 1.23 | 4' x 8' | |
|
Ferrier SS perf 1/8 x 3/16 x 16 ga
Ferrier SS perf 1/8 x 3/16 x 16 ga Grade(s): 304 Hole size: 1/8" Centres: 3/16" stag Gauge: 16 % Open area: 41 Lbs/sf: 1.48 Sheet size: 4' x 8'
|
*.pdf*.dwg | 304 | 1/8" | 3/16" stag | 16 | 41 | 1.48 | 4' x 8' |
|
Ferrier SS perf 1/8 x 3/16 x 20 ga
Ferrier SS perf 1/8 x 3/16 x 20 ga Grade(s): 304 Hole size: 1/8" Centres: 3/16" stag Gauge: 20 % Open area: 41 Lbs/sf: 0.91 Sheet size: 4' x 8'
|
304 | 1/8" | 3/16" stag | 20 | 41 | 0.91 | 4' x 8' | |
|
Ferrier SS perf 3/32 x 3/16 x 16 ga
Ferrier SS perf 3/32 x 3/16 x 16 ga Grade(s): 304 Hole size: 3/32" Centres: 3/16" stag Gauge: 16 % Open area: 23 Lbs/sf: 1.93 Sheet size: 4' x 8'
|
304 | 3/32" | 3/16" stag | 16 | 23 | 1.93 | 4' x 8' | |
|
Ferrier SS perf 1/16 x 1/8 x 16 ga
Ferrier SS perf 1/16 x 1/8 x 16 ga Grade(s): 304 Hole size: 1/16" Centres: 1/8" stag Gauge: 16 % Open area: 23 Lbs/sf: 1.97 Sheet size: 4' x 8'
|
304 | 1/16" | 1/8" stag | 16 | 23 | 1.97 | 4' x 8' | |
|
Ferrier SS perf 1/16 x 1/8 x 20 ga
Ferrier SS perf 1/16 x 1/8 x 20 ga Grade(s): 304 Hole size: 1/16" Centres: 1/8" stag Gauge: 20 % Open area: 23 Lbs/sf: 1.18 Sheet size: 4' x 8'
|
304 | 1/16" | 1/8" stag | 20 | 23 | 1.18 | 4' x 8' | |
|
Ferrier SS perf 1/16 x 3/32 x 20 ga
Ferrier SS perf 1/16 x 3/32 x 20 ga Grade(s): 316 Hole size: 1/16" Centres: 3/32" Gauge: 20 % Open area: 40 Lbs/sf: 0.90 Sheet size: 4' x 8'
|
--- | 316 | 1/16" | 3/32" | 20 | 40 | 0.90 | 4' x 8' |
|
Ferrier SS perf .045 x .066 str x 24 ga
Ferrier SS perf .045 x .066 str x 24 ga Grade(s): 316 Hole size: 0.045" Centres: 0.066" str Gauge: 24 % Open area: 36 Lbs/sf: 0.65 Sheet size: 3' x 8'
|
316 | 0.045" | 0.066" str | 24 | 36 | 0.65 | 3' x 8' | |
|
Ferrier SS perf .033 x .055 str x 26 ga
Ferrier SS perf .033 x .055 str x 26 ga Grade(s): 316 Hole size: 0.033" Centres: 0.055" str Gauge: 26 % Open area: 28 Lbs/sf: 0.55 Sheet size: 3' x 8'
|
316 | 0.033" | 0.055" str | 26 | 28 | 0.55 | 3' x 8' | |
|
Ferrier SS perf .020 x .044 str x 28 ga
Ferrier SS perf .020 x .044 str x 28 ga Grade(s): 304 Hole size: 0.020" Centres: 0.044" str Gauge: 28 % Open area: 20 Lbs/sf: 0.50 Sheet size: 2' x 8'
|
304 | 0.020" | 0.044" str | 28 | 20 | 0.50 | 2' x 8' |
The manufacturing process for stainless steel round hole perforated sheets is quite similar to that of mild steel, however the tooling used with stainless steel must be much more durable and powerful. This is the case because stainless steel is much harder to punch through than mild steel is, the tooling used for mild steel cannot be used with stainless steel as it will get damaged.
Some of the stainless perforated patterns with smaller hole sizes (such as our 3/32” to our .020” hole sizes) have been used for fabricating drum filtration systems due to their filtration capabilities and corrosion resistance. Stainless steel round hole perforated also lends itself to many applications similar to that of its mild steel counterpart such as millwork, railing infills, cabinetry, and other applications of similar nature. As mentioned before however, stainless steel is much better suited to outdoor environments than mild steel, resulting in a wider variety of uses when unfinished.
If you have any questions about our stainless steel perforated metal, please contact us.
