Aluminum Weavemesh/Woven Wire Mesh
Aluminum woven wire mesh is made by weaving wire together on a weaving loom much like fabric is woven. Aluminum woven wire mesh is lightweight, corrosion-resistant and cost-effective when compared to stainless steel. Our 2” x 2”, 1-½” x 1-½”, 1” x 1”, ¾” x ¾” and ½” x ½” patterns are woven in-house and are stocked as 4’ x 8’ sheets. We offer custom widths and lengths, please inquire. Our in-house woven patterns are a pre-crimp wire mesh meaning that the wires are crimped before weaving. This helps keep the spacing consistent and reduces the chances that the wires can shift or be moved. The long wires (warp) are crimped and fed into the loom. The cross wires (fill) are also crimped and then fed into the loom which pushes them into place and advances the mesh. We have the capability to custom weave patterns as well. Our finer aluminum mesh (2 x 2 mesh - 18 x 16 mesh) are cut from rolls and are available in custom lengths. The roll widths and sizes can be seen below under the Roll width(s)/size column.
| View more | Image | Spec. sheet | Mesh count Number of holes per linear inch running across width of mesh x number of holes per linear inch running length of mesh. If numbers have “ denotation e.g. 3/4” x 3/4”, it means 3/4” from the centre of one wire to the centre of the next wire in both directions. |
|---|
| View more | Image | Spec. sheet | Mesh count Number of holes per linear inch running across width of mesh x number of holes per linear inch running length of mesh. If numbers have “ denotation e.g. 3/4” x 3/4”, it means 3/4” from the centre of one wire to the centre of the next wire in both directions. |
|---|---|---|---|
 |

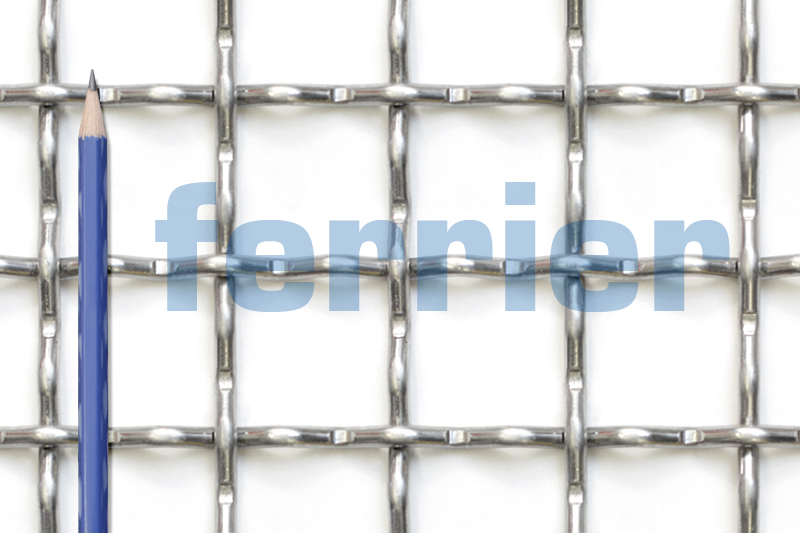

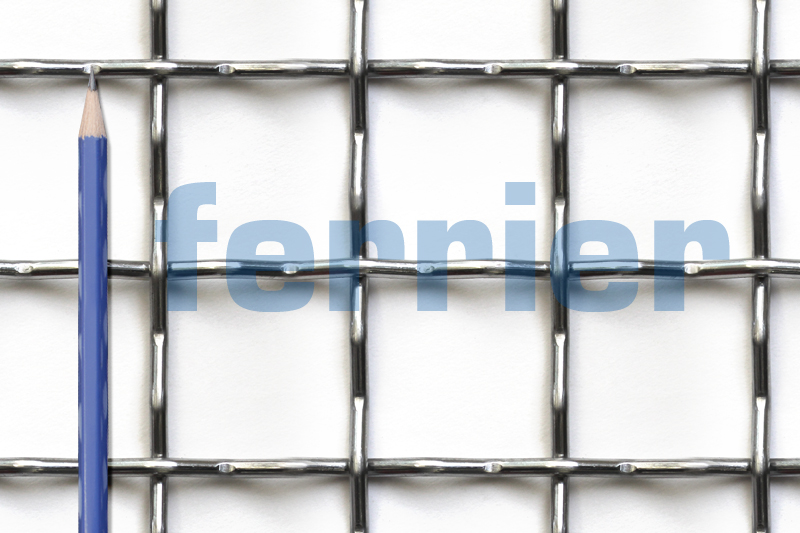

Ferrier alum 2" x 2" x .187 weavemesh
Ferrier alum 2" x 2" x .187 weavemesh Mesh count: 2" x 2" Wire diameter: 0.187" Clear opening: 1.813" Lbs/sf: 0.45 Roll width(s)/size: 36" x 48", 48" x 48", 48" x 96", custom Applications/notes: lightweight guarding, railing infill panels
Size
Material/finish
Price
Delivery Options
Quantity
|
*.pdf*.dwg | 2" x 2" |
|

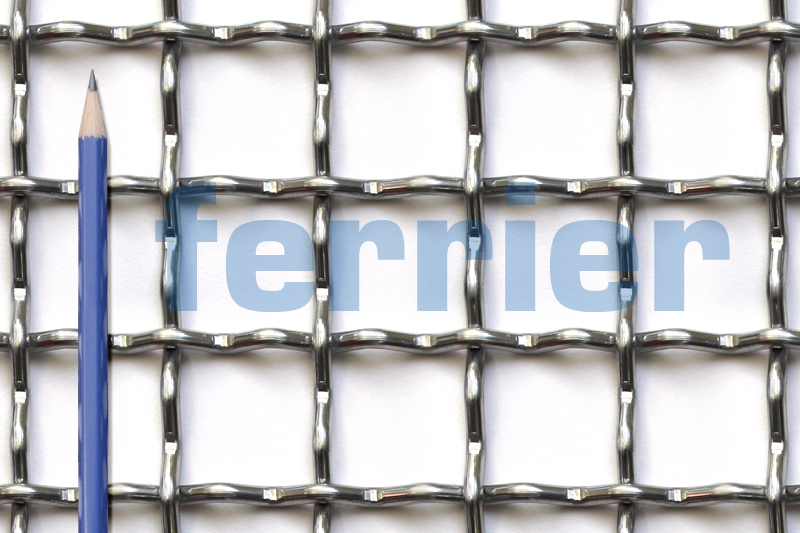

Ferrier alum 1-1/2" x 1-1/2" x .187 weavemesh
Ferrier alum 1-1/2" x 1-1/2" x .187 weavemesh Mesh count: 1-1/2" x 1-1/2" Wire diameter: 0.187" Clear opening: 1.313" Lbs/sf: 0.60 Roll width(s)/size: 36" x 48", 48" x 48", 48" x 96", custom Applications/notes: lightweight guarding, ceiling tiles, design applications
Size
Material/finish
Price
Delivery Options
Quantity
|
1-1/2" x 1-1/2" | |
|

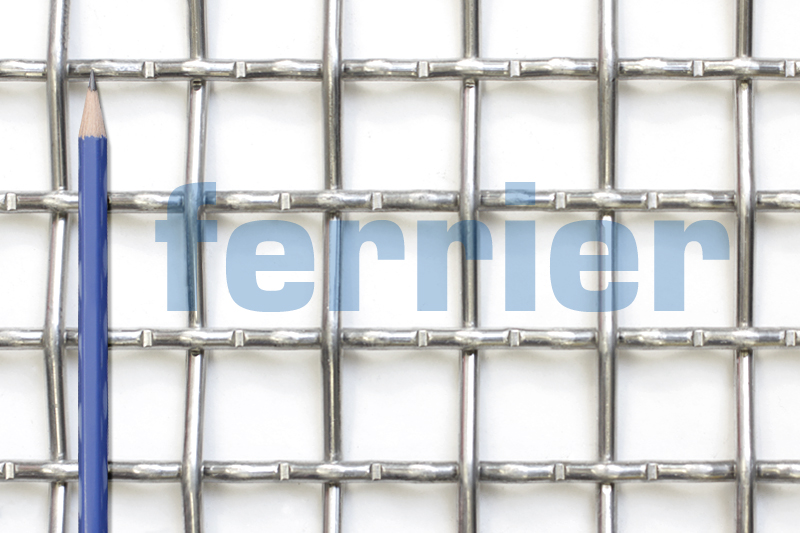

Ferrier alum 1" x 1" x .125 weavemesh
Ferrier alum 1" x 1" x .125 weavemesh Mesh count: 1" x 1" Wire diameter: 0.125" Clear opening: 0.875" Lbs/sf: 0.33 Roll width(s)/size: 36" x 48", 48" x 48", 48" x 96", custom Applications/notes: lightweight guarding, ceiling tiles, design applications
Size
Material/finish
Price
Delivery Options
Quantity
|
1" x 1" | |
|

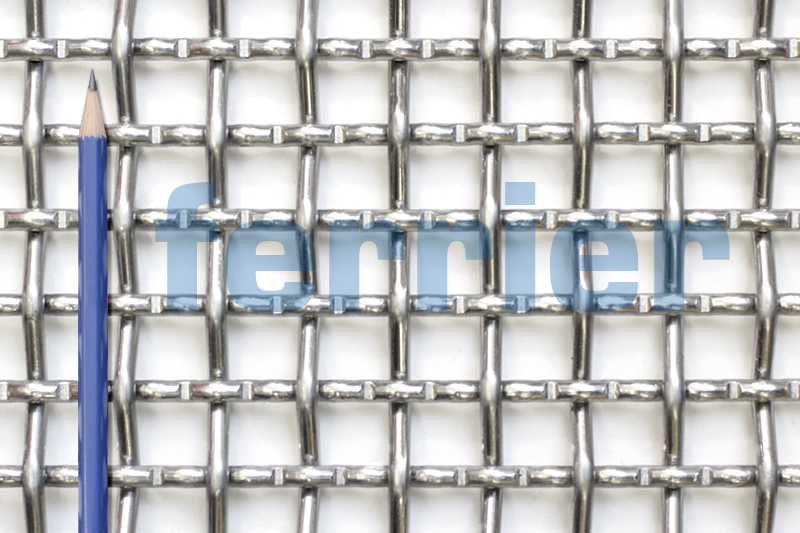

Ferrier alum 3/4" x 3/4" x .125 weavemesh
Ferrier alum 3/4" x 3/4" x .125 weavemesh Mesh count: 3/4" x 3/4" Wire diameter: 0.125" Clear opening: 0.625" Lbs/sf: 0.44 Roll width(s)/size: 36" x 48", 48" x 48", 48" x 96", custom Applications/notes: lightweight guarding, ceiling tiles, design applications
Size
Material/finish
Price
Delivery Options
Quantity
|
3/4" x 3/4" | |
|
Ferrier alum 2 x 2 mesh x .125 weavemesh
Ferrier alum 2 x 2 mesh x .125 weavemesh Mesh count: 2 x 2 mesh Wire diameter: 0.125" Clear opening: 0.375" Lbs/sf: 0.67 Roll width(s)/size: 36" x 48", 48" x 48", 48" x 96", custom Applications/notes: lightweight guarding , ceiling tiles, design applications
Size
Material/finish
Price
Delivery Options
Quantity
|
2 x 2 mesh | |
|
Ferrier alum 2 x 2 mesh x .0625 weavemesh
Ferrier alum 2 x 2 mesh x .0625 weavemesh Mesh count: 2 x 2 mesh Wire diameter: 0.0625" Clear opening: 0.4375" Lbs/sf: 0.19 Roll width(s)/size: 60" wide rolls Applications/notes: birdscreen, vent screen
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
*.pdf*.dwg | 2 x 2 mesh |
|
Ferrier alum 4 x 4 mesh x .0625 weavemesh
Ferrier alum 4 x 4 mesh x .0625 weavemesh Mesh count: 4 x 4 mesh Wire diameter: 0.0625" Clear opening: 0.1875" Lbs/sf: 0.37 Roll width(s)/size: 48" wide rolls Applications/notes: birdscreen, sifting
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
4 x 4 mesh | |
|
Ferrier alum 8 x 8 mesh x .028 weavemesh
Ferrier alum 8 x 8 mesh x .028 weavemesh Mesh count: 8 x 8 mesh Wire diameter: .028" Clear opening: 0.097" Lbs/sf: 0.14 Roll width(s)/size: 36" x 96", custom lengths Applications/notes: filtration
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
8 x 8 mesh | |
|
Ferrier alum 14 x 14 mesh x .020 weavemesh
Ferrier alum 14 x 14 mesh x .020 weavemesh Mesh count: 14 x 14 mesh Wire diameter: 0.020" Clear opening: 0.051" Lbs/sf: 0.14 Roll width(s)/size: 36" x 96", custom lengths Applications/notes: filtration
Size
Material/finish
Price
Delivery Options
Quantity
Custom: For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following: Custom Size
Material/finish
Description (if applicable)
Quantity
|
14 x 14 mesh | |
 |

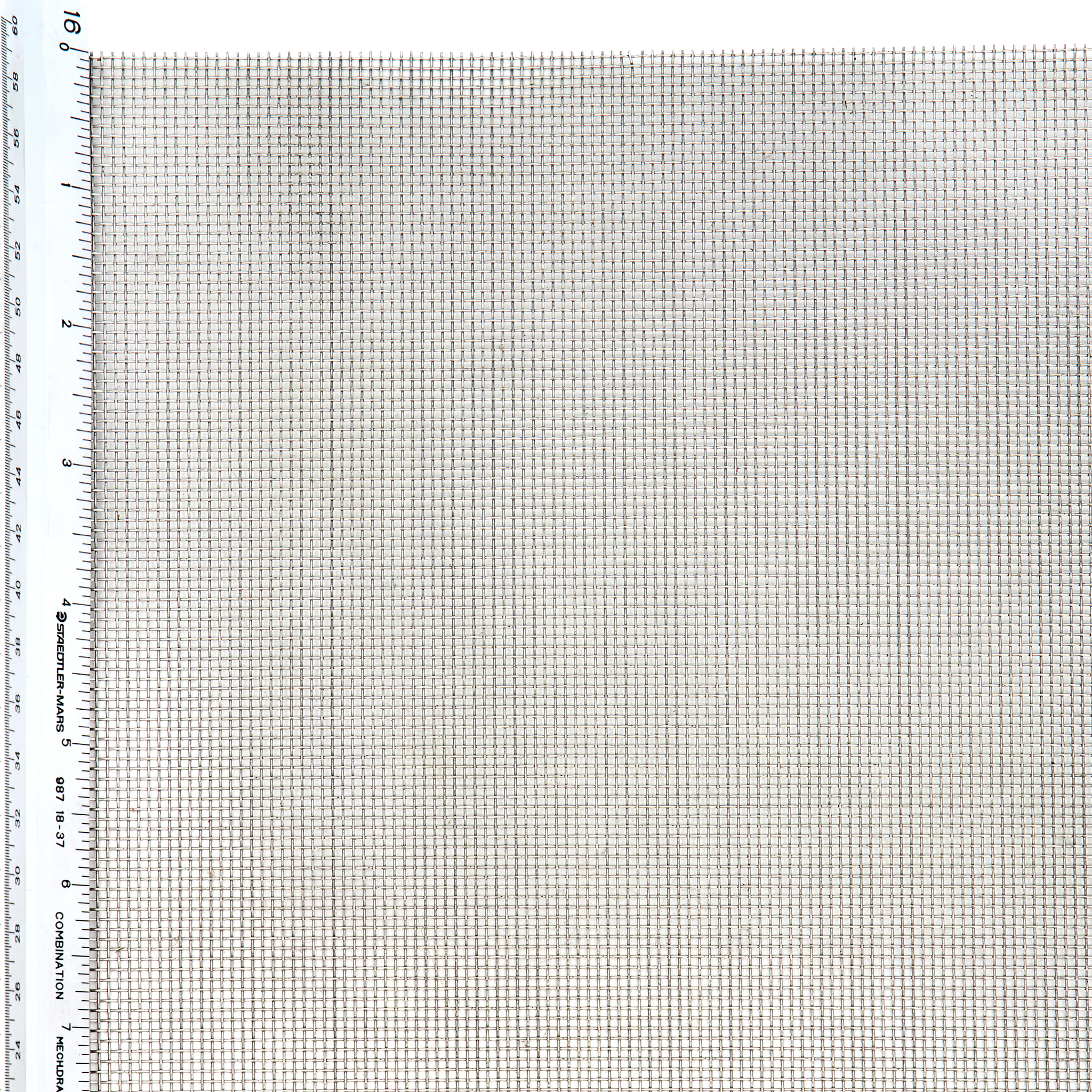

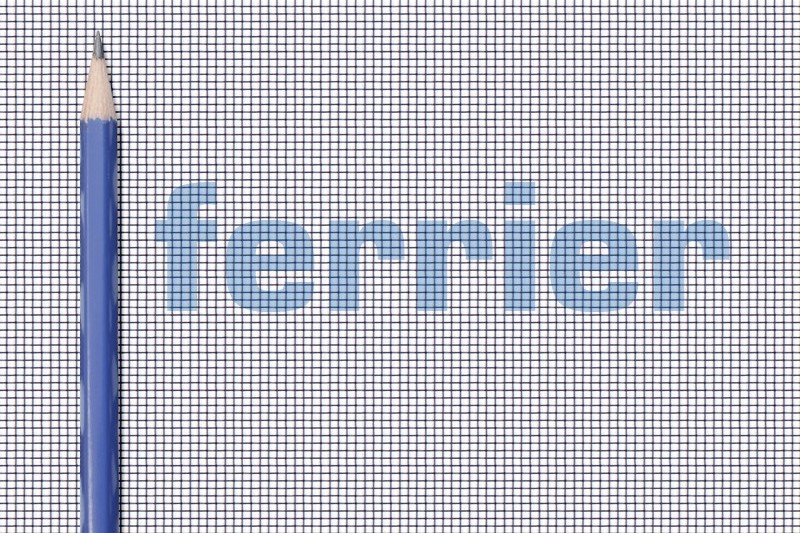

Ferrier black alum insect screen
Ferrier black alum insect screen Mesh count: 18 x 16 mesh Wire diameter: 0.011" Clear opening: .045"x .052" Lbs/sf: 0.050 Roll width(s)/size: 48" wide rolls Applications/notes: black aluminum insect screen
|
--- | 18 x 16 mesh |
|
Ferrier bright alum insect screen
Ferrier bright alum insect screen Mesh count: 18 x 16 mesh Wire diameter: 0.011" Clear opening: .045" x .052" Lbs/sf: 0.050 Roll width(s)/size: 36", 60" rolls Applications/notes: bright aluminum insect screen
Size
Material/finish
Price
Delivery Options
Quantity
|
--- | 18 x 16 mesh |
Aluminum Weavemesh/Woven Wire Mesh Applications
A common and one of the most popular applications for the heavier and larger (1/2” x 1/2” and coarser) aluminum weavemesh/woven wire mesh as lightweight guarding and railing infill panels. Its durability and cost-effectiveness make it an attractive alternative to powder-coated metal or stainless steel weavemesh. These patterns have also been used as backgrounds in signage onto which letters and graphics are then attached. The tighter of these patterns are suitable for use as privacy screens.
Aluminum curtain wall often incorporates the aluminum birdscreen (1/2” x 1/2" x 16 ga) to prevent birds, small animals, and debris from access. It is also used in aluminum HVAC applications for the same purpose.
We have custom woven the ¾” x ¾” pattern a number of times to be used as an attractive lightweight and cost-effective alternative to standard ceiling tile options. In one condominium project, the ceiling of the top floor hallway was a little lower than the other floors. The mesh was used to both restrict the view of the mechanical systems above it while still creating the feeling of height in the hallway.
The aluminum insect screen has a number of uses in construction. In addition to being installed as insect (window) screen it is also used as soffit screen. Industrially it is an economical and lightweight mesh to hold filter media in place.
Finer aluminum mesh is easily formed and manipulated for sculpture and design projects. We have also seen it used for trade show booths and presentation stages hung from the ceiling as a screen onto which displays and media are projected.
Anodizing aluminum is an electromechanical process that converts the metal into a decorative, durable and corrosion-resistant finish. Please contact us if you have any questions about this process.
Why Choose Aluminum Weavemesh/Woven Wire Mesh?
Characteristics of Aluminum weavemesh/woven wire mesh:
Lightweight
Corrosion resistant
More economical than stainless steel counterparts
Long-lasting
Anodizing finishing options that are very durable and long-lasting
Custom size and pattern weaving options
If you have any questions about our aluminum weavemesh or any other products or projects, please email or call us.
