Brass weavemesh
Expand All ← Click here to view all Brass weavemesh available for sale online
View moreImageSpec. sheetMesh count
Number of holes per linear inch running across width of mesh x number of holes per linear inch running length of mesh. If numbers have “ denotation e.g. 3/4” x 3/4”, it means 3/4” from the centre of one wire to the centre of the next wire in both directions.
Wire diameter
Thickness of wire in inches.
Clear opening
Actual spacing between consecutive wires in inches.
% Open area
The percent open area relates to the amount of flow or light that will pass through the mesh.
Lbs/sf
Weight of material per square foot.
Applications/notes
Typical application or uses of product.
View moreImageSpec. sheetMesh countWire diameterClear opening% Open areaLbs/sfApplications/notes

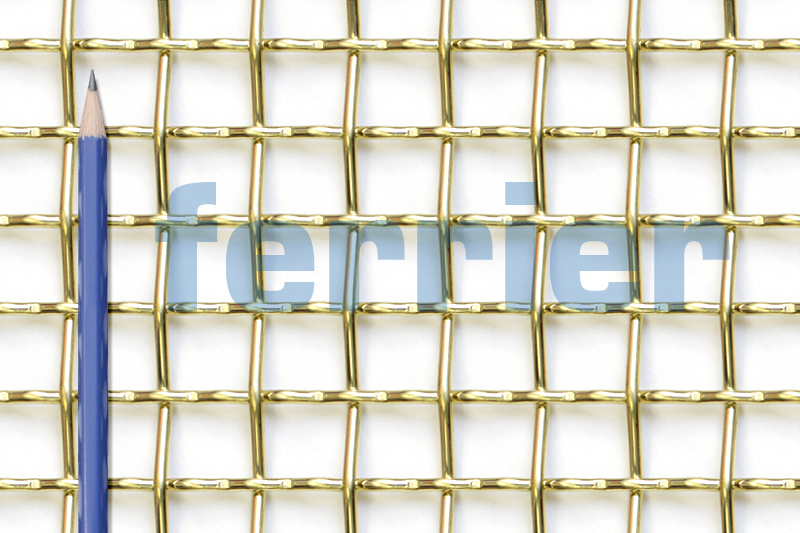

Purchase Online Ferrier brass 2 x 2 mesh x .080 weavemesh
Ferrier brass 2 x 2 mesh x .080 weavemesh
Ferrier brass 2 x 2 mesh x .080 weavemesh

Ferrier brass 2 x 2 mesh x .080 weavemesh

Mesh count:
2 x 2 mesh
Wire diameter:
0.080"
Clear opening:
0.420"
% Open area:
70.6
Lbs/sf:
0.917
Applications/notes:
millwork, cabinetry, birdscreen
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$345.00
N
48" x 48"
Brass
$345.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 2 x 2 mesh0.080"0.420"70.60.917millwork, cabinetry, birdscreen
Purchase Online Ferrier brass 4 x 4 mesh x .047 weavemesh
Ferrier brass 4 x 4 mesh x .047 weavemesh
Ferrier brass 4 x 4 mesh x .047 weavemesh

Ferrier brass 4 x 4 mesh x .047 weavemesh

Mesh count:
4 x 4 mesh
Wire diameter:
0.047"
Clear opening:
0.203"
% Open area:
65.9
Lbs/sf:
0.637
Applications/notes:
millwork, cabinetry, birdscreen
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$308.00
N
48" x 48"
Brass
$308.00
Y
48" x 96"
Brass
$616.00
N
48" x 96"
Brass
$616.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 4 x 4 mesh0.047"0.203"65.90.637millwork, cabinetry, birdscreen
Purchase Online Ferrier brass 6 x 6 mesh x .035 weavemesh
Ferrier brass 6 x 6 mesh x .035 weavemesh
Ferrier brass 6 x 6 mesh x .035 weavemesh

Ferrier brass 6 x 6 mesh x .035 weavemesh

Mesh count:
6 x 6 mesh
Wire diameter:
0.035"
Clear opening:
0.132"
% Open area:
62.7
Lbs/sf:
0.532
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$181.00
N
36" x 48"
Brass
$181.00
Y
36" x 96"
Brass
$362.00
N
36" x 96"
Brass
$362.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 6 x 6 mesh0.035"0.132"62.70.532millwork, cabinetry, filtration
Purchase Online Ferrier brass 8 x 8 mesh x .028 weavemesh
Ferrier brass 8 x 8 mesh x .028 weavemesh
Ferrier brass 8 x 8 mesh x .028 weavemesh

Ferrier brass 8 x 8 mesh x .028 weavemesh

Mesh count:
8 x 8 mesh
Wire diameter:
0.028"
Clear opening:
0.097"
% Open area:
60.2
Lbs/sf:
0.454
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$219.00
N
48" x 48"
Brass
$219.00
Y
48" x 96"
Brass
$438.00
N
48" x 96"
Brass
$438.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 8 x 8 mesh0.028"0.097"60.20.454millwork, cabinetry, filtration
Purchase Online Ferrier brass 10 x 10 mesh .025 weavemesh
Ferrier brass 10 x 10 mesh .025 weavemesh
Ferrier brass 10 x 10 mesh .025 weavemesh

Ferrier brass 10 x 10 mesh .025 weavemesh

Mesh count:
10 x 10 mesh
Wire diameter:
0.025"
Clear opening:
0.075"
% Open area:
56.3
Lbs/sf:
0.455
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$162.00
N
36" x 48"
Brass
$162.00
Y
36" x 96"
Brass
$324.00
N
36" x 96"
Brass
$324.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 10 x 10 mesh0.025"0.075"56.30.455millwork, cabinetry, filtration
Purchase Online Ferrier brass 12 x 12 mesh .023 weavemesh
Ferrier brass 12 x 12 mesh .023 weavemesh
Ferrier brass 12 x 12 mesh .023 weavemesh

Ferrier brass 12 x 12 mesh .023 weavemesh

Mesh count:
12 x 12 mesh
Wire diameter:
0.023"
Clear opening:
0.060"
% Open area:
51.8
Lbs/sf:
0.466
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$168.00
N
36" x 48"
Brass
$168.00
Y
36" x 96"
Brass
$336.00
N
36" x 96"
Brass
$336.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 12 x 12 mesh0.023"0.060"51.80.466millwork, cabinetry, filtration
Purchase Online Ferrier brass 14 x 14 mesh x .020 weavemesh
Ferrier brass 14 x 14 mesh x .020 weavemesh
Ferrier brass 14 x 14 mesh x .020 weavemesh

Ferrier brass 14 x 14 mesh x .020 weavemesh

Mesh count:
14 x 14 mesh
Wire diameter:
0.020"
Clear opening:
0.051"
% Open area:
51.0
Lbs/sf:
0.411
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$172.00
N
36" x 48"
Brass
$172.00
Y
36" x 96"
Brass
$344.00
N
36" x 96"
Brass
$344.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 14 x 14 mesh0.020"0.051"51.00.411millwork, cabinetry, filtration
Purchase Online Ferrier brass 16 x 16 mesh x .018 weavemesh
Ferrier brass 16 x 16 mesh x .018 weavemesh
Ferrier brass 16 x 16 mesh x .018 weavemesh

Ferrier brass 16 x 16 mesh x .018 weavemesh

Mesh count:
16 x 16 mesh
Wire diameter:
0.018"
Clear opening:
0.045"
% Open area:
50.7
Lbs/sf:
0.381
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$162.00
N
36" x 48"
Brass
$162.00
Y
36" x 96"
Brass
$324.00
N
36" x 96"
Brass
$324.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 16 x 16 mesh0.018"0.045"50.70.381millwork, cabinetry, filtration
Purchase Online Ferrier brass 16 x 16 mesh x .011 weavemesh
Ferrier brass 16 x 16 mesh x .011 weavemesh
Ferrier brass 16 x 16 mesh x .011 weavemesh

Ferrier brass 16 x 16 mesh x .011 weavemesh

Mesh count:
16 x 16 mesh
Wire diameter:
0.011"
Clear opening:
0.052"
% Open area:
67.9
Lbs/sf:
0.139
Applications/notes:
insect screen, soffit screen
Size
Material/finish
Price
Pickup Only
Quantity
60" x 120"
Brass
$165.00
N
60" x 120"
Brass
$165.00
Y
60" x 100'
Brass
$1075.00
N
60" x 100'
Brass
$1075.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 16 x 16 mesh0.011"0.052"67.90.139insect screen, soffit screen
Purchase Online Ferrier brass 20 x 20 mesh x .016 weavemesh
Ferrier brass 20 x 20 mesh x .016 weavemesh
Ferrier brass 20 x 20 mesh x .016 weavemesh

Ferrier brass 20 x 20 mesh x .016 weavemesh

Mesh count:
20 x 20 mesh
Wire diameter:
0.016"
Clear opening:
0.034"
% Open area:
46.2
Lbs/sf:
0.38
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$172.00
N
36" x 48"
Brass
$172.00
Y
36" x 96"
Brass
$344.00
N
36" x 96"
Brass
$344.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 20 x 20 mesh0.016"0.034"46.20.38millwork, cabinetry, filtration
Purchase Online Ferrier brass 24 x 24 mesh x .014 weavemesh
Ferrier brass 24 x 24 mesh x .014 weavemesh
Ferrier brass 24 x 24 mesh x .014 weavemesh

Ferrier brass 24 x 24 mesh x .014 weavemesh

Mesh count:
24 x 24 mesh
Wire diameter:
0.014"
Clear opening:
0.028"
% Open area:
44.2
Lbs/sf:
0.351
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$173.00
N
36" x 48"
Brass
$173.00
Y
36" x 96"
Brass
$346.00
N
36" x 96"
Brass
$346.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 24 x 24 mesh0.014"0.028"44.20.351millwork, cabinetry, filtration
Purchase Online Ferrier brass 30 x 30 mesh x .012 weavemesh
Ferrier brass 30 x 30 mesh x .012 weavemesh
Ferrier brass 30 x 30 mesh x .012 weavemesh

Ferrier brass 30 x 30 mesh x .012 weavemesh

Mesh count:
30 x 30 mesh
Wire diameter:
0.012"
Clear opening:
0.021"
% Open area:
40.8
Lbs/sf:
0.325
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$167.00
N
36" x 48"
Brass
$167.00
Y
36" x 96"
Brass
$334.00
N
36" x 96"
Brass
$334.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 30 x 30 mesh0.012"0.021"40.80.325millwork, cabinetry, filtration
Purchase Online Ferrier brass 40 x 40 mesh x .010 weavemesh
Ferrier brass 40 x 40 mesh x .010 weavemesh
Ferrier brass 40 x 40 mesh x .010 weavemesh

Ferrier brass 40 x 40 mesh x .010 weavemesh

Mesh count:
40 x 40 mesh
Wire diameter:
0.010"
Clear opening:
0.015"
% Open area:
36.0
Lbs/sf:
0.273
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$176.00
N
36" x 48"
Brass
$176.00
Y
36" x 96"
Brass
$352.00
N
36" x 96"
Brass
$352.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
--- 40 x 40 mesh0.010"0.015"36.00.273millwork, cabinetry, filtration
Purchase Online Ferrier brass 50 x 50 mesh x .009 weavemesh
Ferrier brass 50 x 50 mesh x .009 weavemesh
Ferrier brass 50 x 50 mesh x .009 weavemesh

Ferrier brass 50 x 50 mesh x .009 weavemesh

Mesh count:
50 x 50 mesh
Wire diameter:
0.009"
Clear opening:
0.011"
% Open area:
30.3
Lbs/sf:
0.314
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$171.00
N
36" x 48"
Brass
$171.00
Y
36" x 96"
Brass
$342.00
N
36" x 96"
Brass
$342.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
--- 50 x 50 mesh0.009"0.011"30.30.314millwork, cabinetry, filtration
Purchase Online Ferrier brass 60 x 60 mesh x .005 weavemesh
Ferrier brass 60 x 60 mesh x .005 weavemesh
Ferrier brass 60 x 60 mesh x .005 weavemesh

Ferrier brass 60 x 60 mesh x .005 weavemesh

Mesh count:
60 x 60 mesh
Wire diameter:
0.005"
Clear opening:
0.012"
% Open area:
51.8
Lbs/sf:
0.160
Applications/notes:
very light, design applications
Size
Material/finish
Price
Pickup Only
Quantity
39" x 96"
Brass
$118.00
N
39" x 96"
Brass
$118.00
Y
39" x 82'
Brass
$882.00
N
39" x 82'
Brass
$882.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
--- 60 x 60 mesh0.005"0.012"51.80.160very light, design applications
Purchase Online Ferrier brass 70 x 70 mesh x .0065 weavemesh
Ferrier brass 70 x 70 mesh x .0065 weavemesh
Ferrier brass 70 x 70 mesh x .0065 weavemesh

Ferrier brass 70 x 70 mesh x .0065 weavemesh

Mesh count:
70 x 70 mesh
Wire diameter:
0.0065"
Clear opening:
0.008"
% Open area:
29.8
Lbs/sf:
0.230
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$159.00
N
36" x 48"
Brass
$159.00
Y
36" x 96"
Brass
$318.00
N
36" x 96"
Brass
$318.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
--- 70 x 70 mesh0.0065"0.008"29.80.230millwork, cabinetry, filtration
Purchase Online Ferrier brass 80 x 80 mesh x .0055 weavemesh
Ferrier brass 80 x 80 mesh x .0055 weavemesh
Ferrier brass 80 x 80 mesh x .0055 weavemesh

Ferrier brass 80 x 80 mesh x .0055 weavemesh

Mesh count:
80 x 80 mesh
Wire diameter:
0.0055"
Clear opening:
0.007"
% Open area:
31.4
Lbs/sf:
0.187
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$177.00
N
36" x 48"
Brass
$177.00
Y
36" x 96"
Brass
$354.00
N
36" x 96"
Brass
$354.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
*.pdf 80 x 80 mesh0.0055"0.007"31.40.187millwork, cabinetry, filtration
Purchase Online Ferrier brass 100 x 100 mesh x .0045 weavemesh
Ferrier brass 100 x 100 mesh x .0045 weavemesh
Ferrier brass 100 x 100 mesh x .0045 weavemesh

Ferrier brass 100 x 100 mesh x .0045 weavemesh

Mesh count:
100 x 100 mesh
Wire diameter:
0.0045"
Clear opening:
0.0055"
% Open area:
30.3
Lbs/sf:
0.159
Applications/notes:
millwork, cabinetry, filtration
Size
Material/finish
Price
Pickup Only
Quantity
36" x 48"
Brass
$181.00
N
36" x 48"
Brass
$181.00
Y
36" x 96"
Brass
$362.00
N
36" x 96"
Brass
$362.00
Y

Custom:

For quantities greater than 5 pieces of one item or custom sizes larger than those noted above (our minimums) please complete and submit the following:

Custom Size
Material/finish
Description (if applicable)
Quantity
--- 100 x 100 mesh0.0045"0.0055"30.30.159millwork, cabinetry, filtration

If you have any questions about our brass weavemesh or any other products, please call or email us.

To view a range of our brass weavemesh for use in architectural and design applications as well as projects using these products, please click here.



Request an info

123
